PLBK-14.0-1800

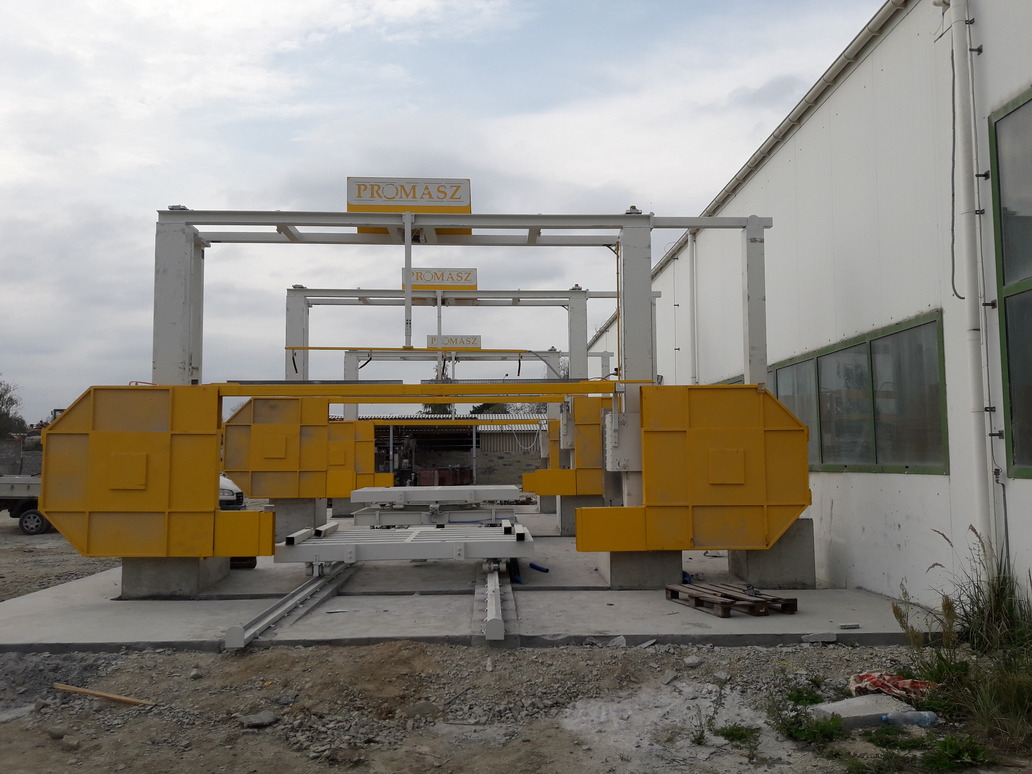

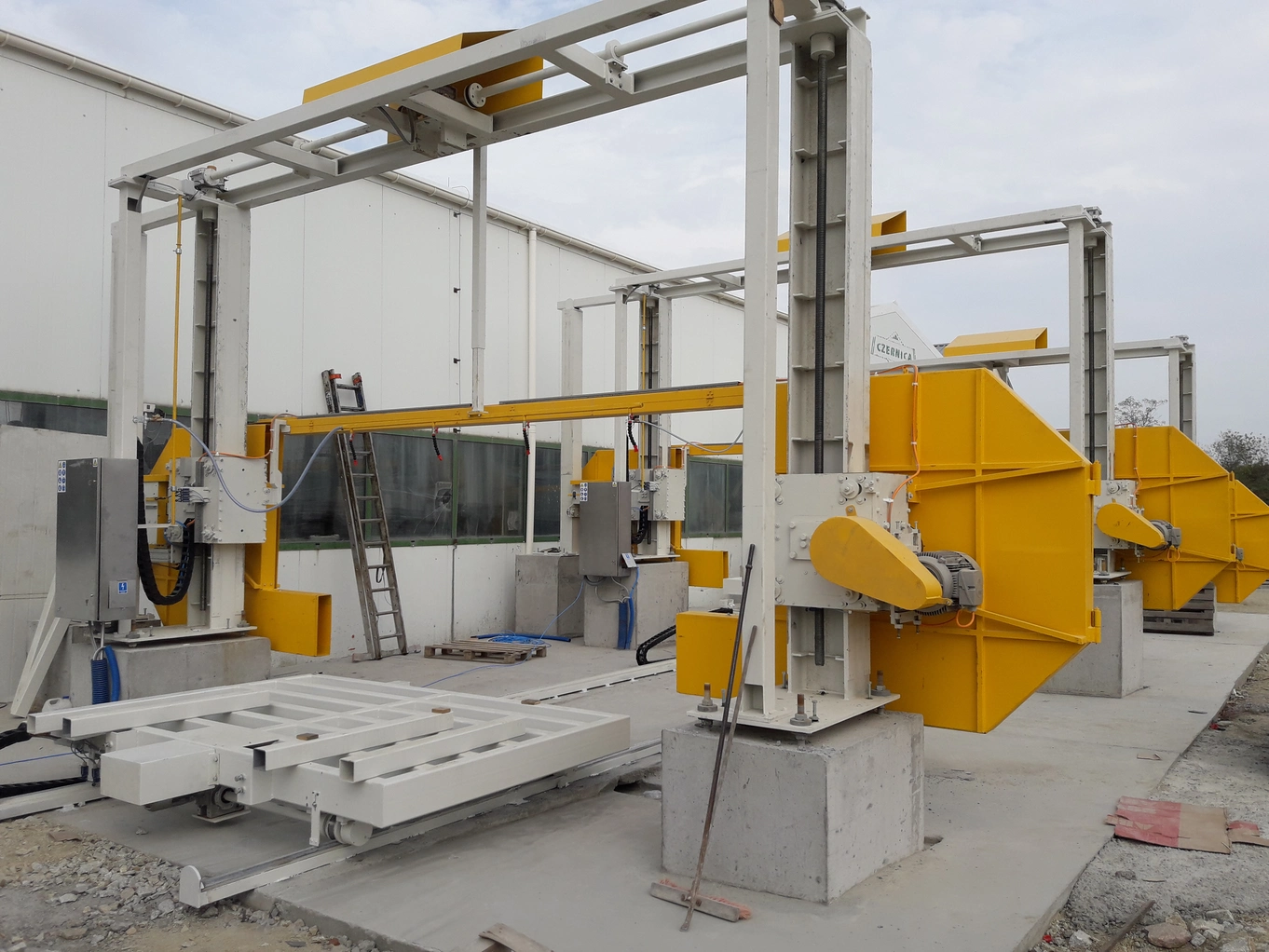

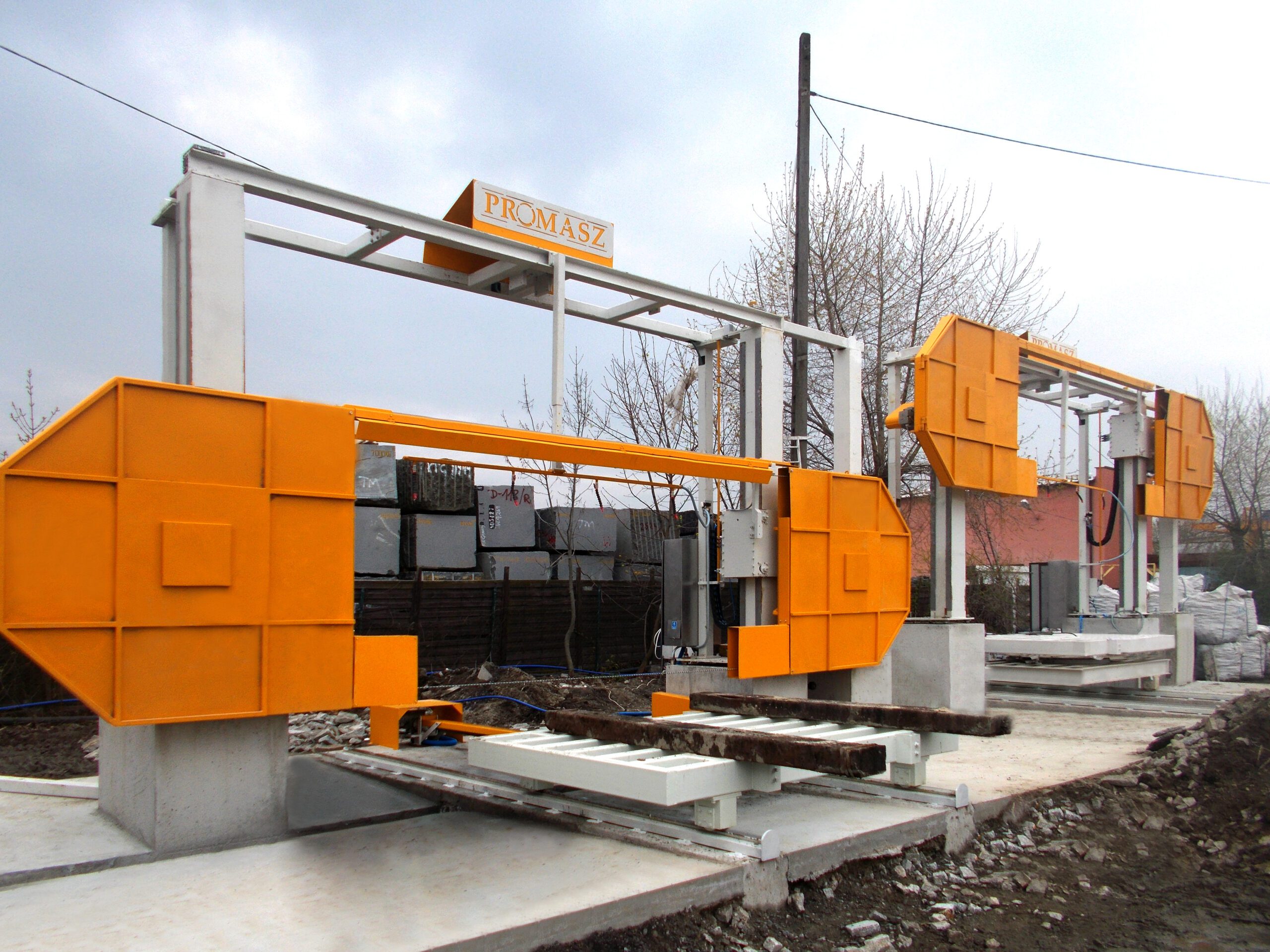

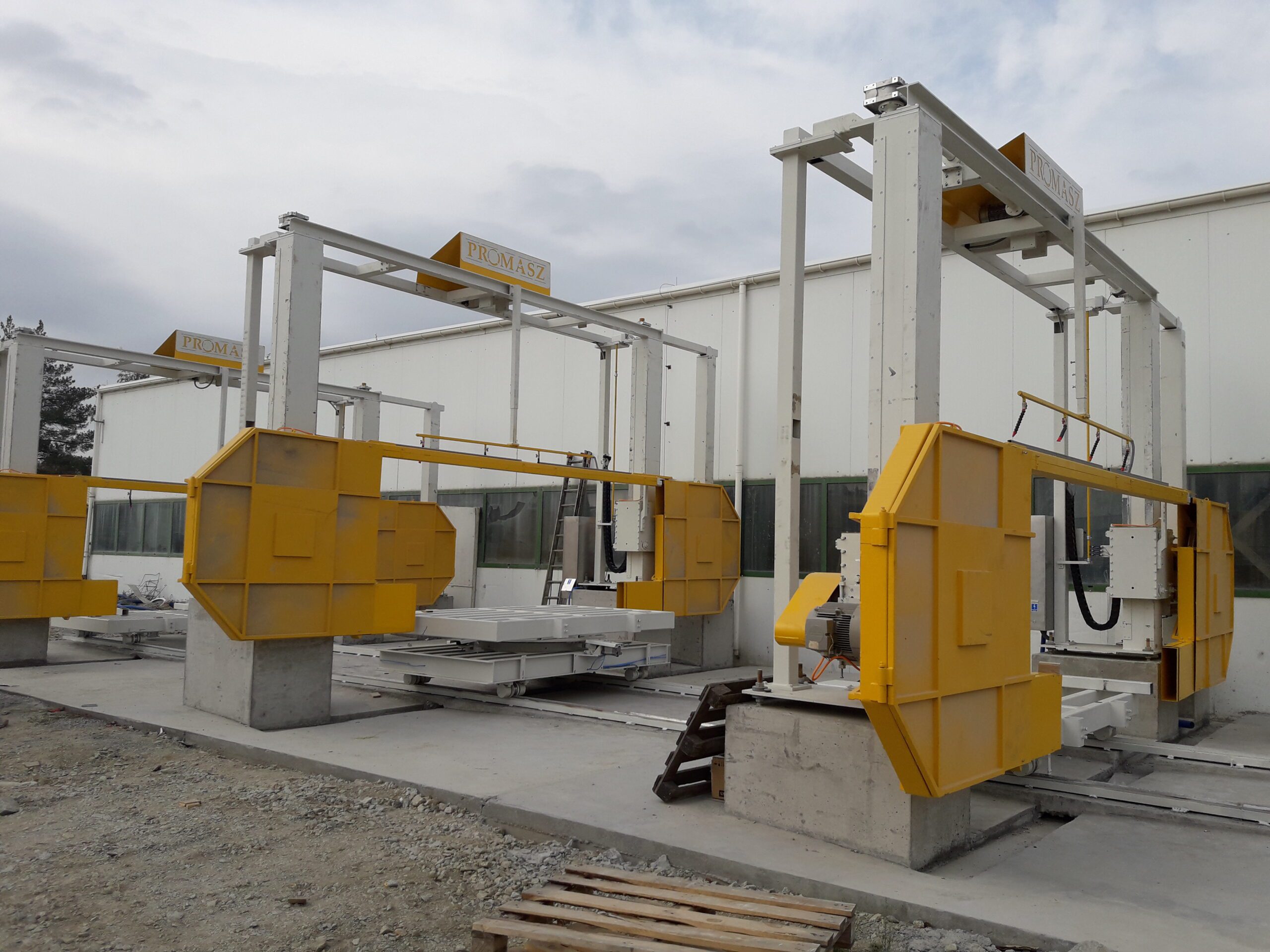

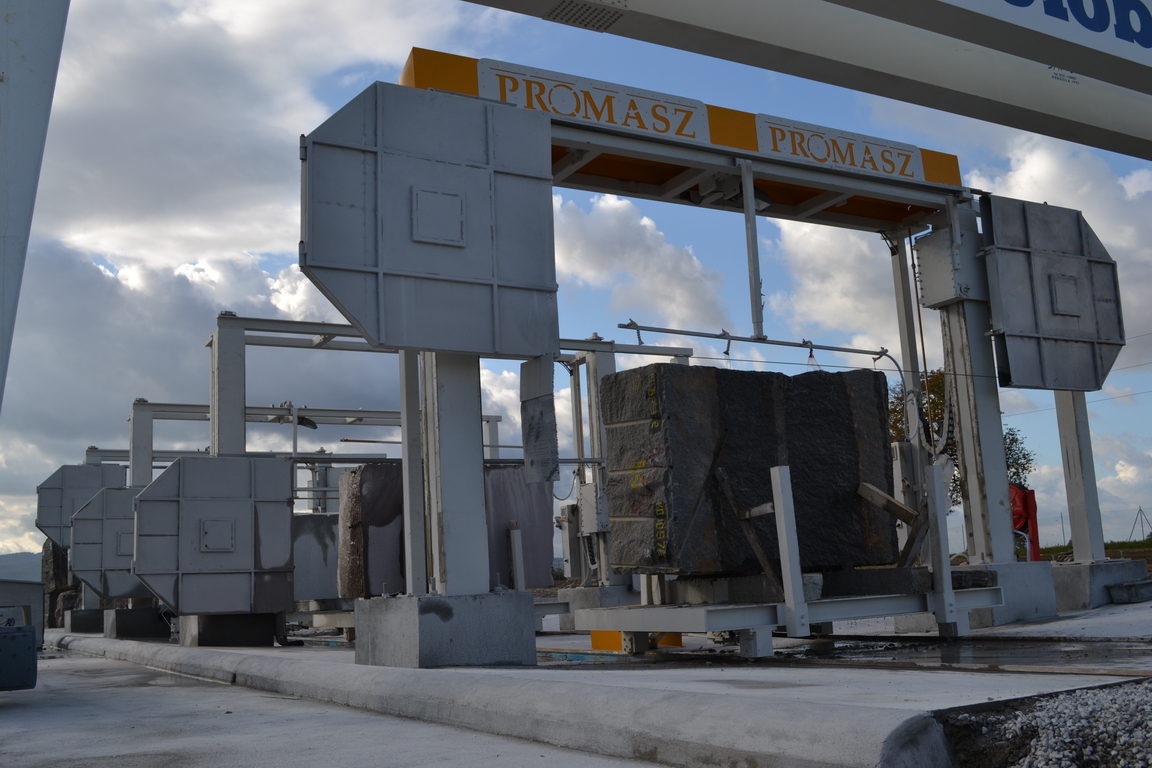

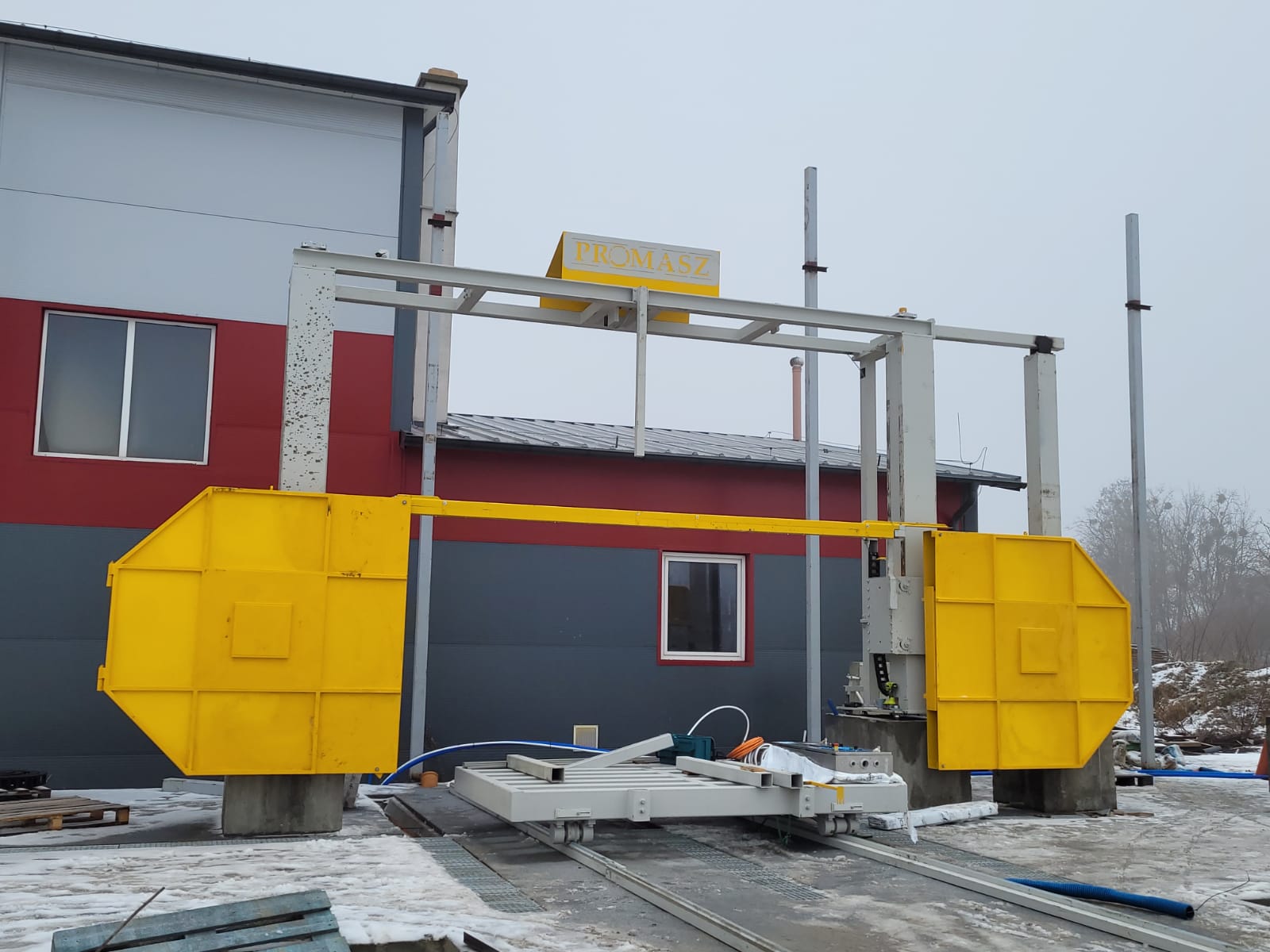

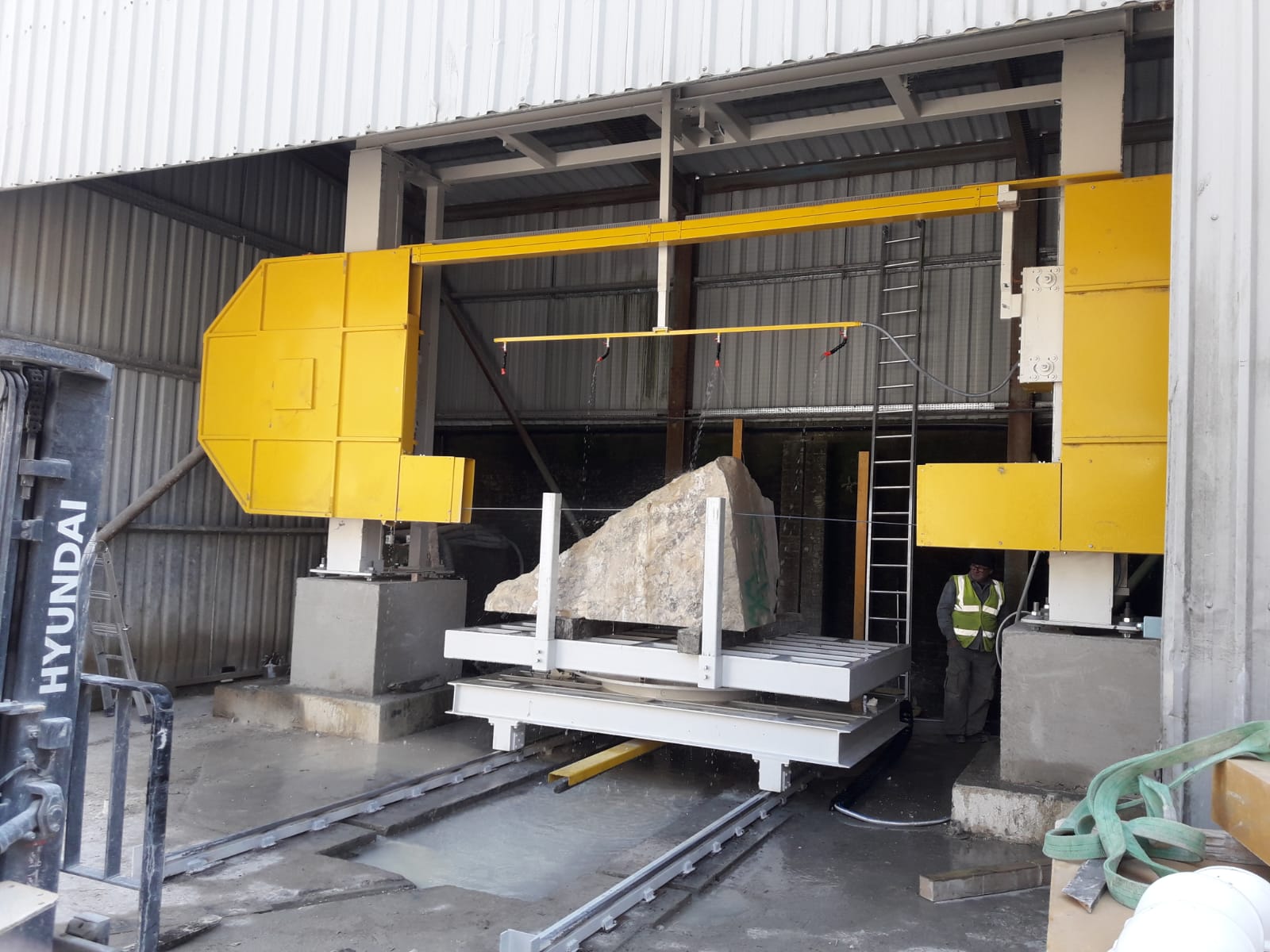

Wire Saw for Cutting Stone Blocks
A professional wire saw designed for the precision cutting of large stone blocks.
With smooth control of wire and trolley movement, automatic cutting cycle programming, dynamic wire tension control, and a rigid steel structure, the PLBK series ensures reliable and highly accurate block processing.
Technical Specifications
- Maximum block dimensions
- Length: 3500 mm
- Width: 1800 mm
- Height: 1760 mm
- Rail track length: 5 meters
- Diamond wire length: 1915 mm
- Trolley load capacity: up to 20 tons
- Main motor power: 11 kW
Installation Requirements
- Power supply: 3x400V + N + PE
- Power cable: 5 x 6 mm² (copper)
- Protection: D40 – 3P
- Grounding: minimum 120 mm² strip to PE
- Utilities: electricity, water, compressed air supplied from the control cabinet side
Key features included as standard
Standard equipment and systems you receive immediately
The standard machine includes everything you need to start working right away – from the main frame and spindle to the control system. All parts are industrially tested and ensure high precision and reliable performance day after day.
Standard Equipment
- Rigid steel frame

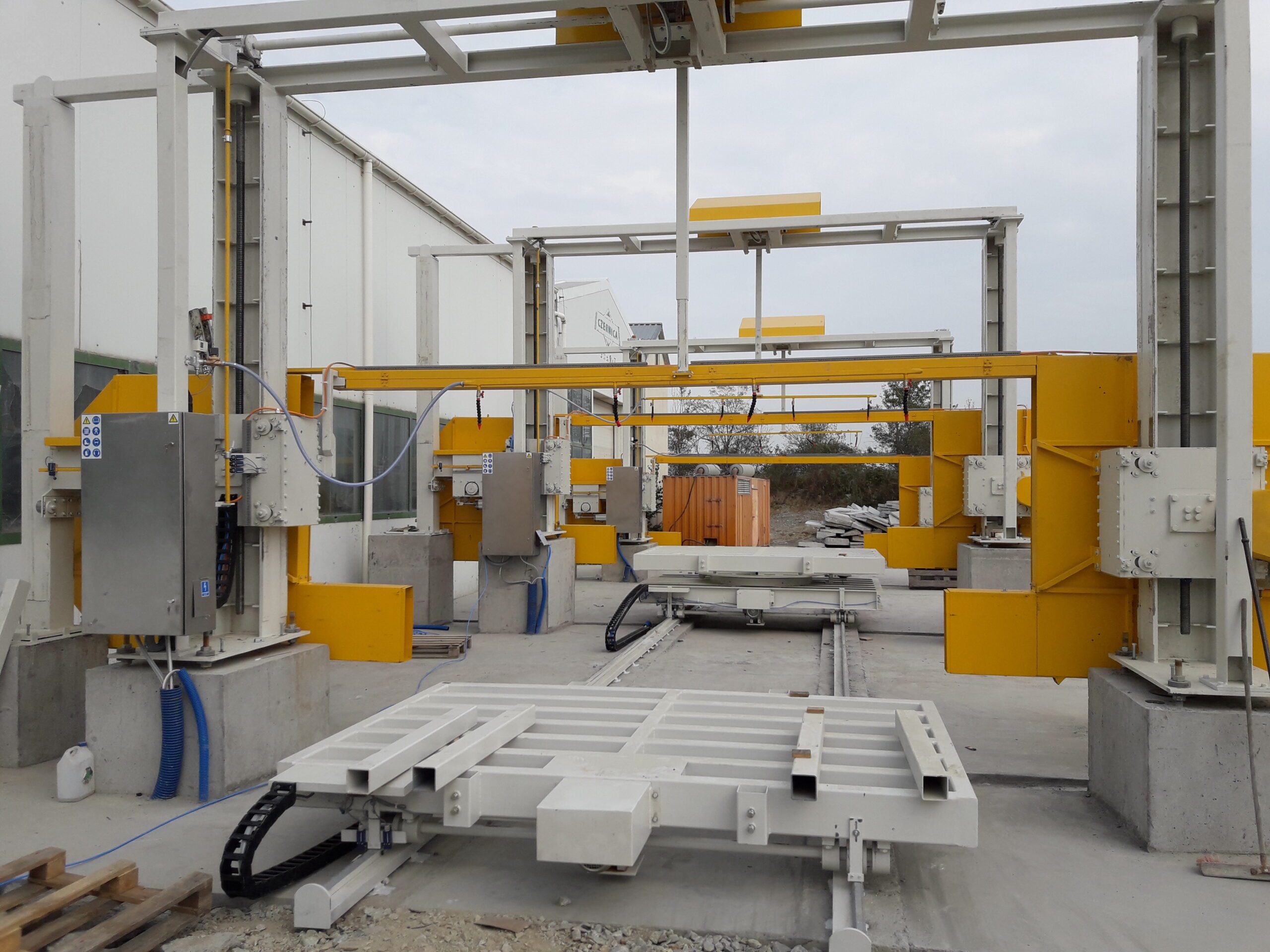

- Trolley moved by ball screw
- Inverter-controlled movement of the wire and trolley (start/stop, speed)
- Wire guide wheels covered with metal shields
- Operator panel for programming parameters
- Water pressure sensor
- Structural industrial paint finish
Core System
- Touchscreen operator panel
- Smooth regulation of wire and trolley speed
- Motor protections (against short circuit, overload, phase loss)
- Dynamic wire tension monitoring
- Cutting precision:
- Plate thickness tolerance along Y-axis: ±1 mm
- Vertical movement tolerance in Z-axis: ±0.1 mm per 100 mm
Types of Operations
Automatic Cycle:
- Wire cutting with adjustable descent speed
- Automatic trolley movement according to the programmed cut width
- Fast wire return to the top position
- Programming up to 5 cut widths and 99 repetition cycles
- Dynamic wire tension control during cutting
Manual Cycle:
- Programmed trolley movement
- Manual vertical support movement
The machine scales with your production
Extend functionality, amplify potential
You can equip any model with extra functionalities designed for your exact requirements – including expanded CNC control, material lifting and transport solutions, and CAD/CAM/3D modules. Thanks to its modular design, you can easily expand the machine at any time during its lifespan.
Optional Equipment
- Water solenoid valve
- Remote wire operation monitoring software
- Stainless steel protective covers
- Heated control cabinet
- Wired remote control
- Wire position display (up/down)
Attention: The modification options and optional equipment shown are available for an additional charge. This description is provided for information only.
Extended System / Control Options
- Adjustable height of the water feeder
- Trolley securing stanchions (block locking)
- Steel anchoring system
- Trolley with rotary table
- Extended rail tracks
- Powered trolley wheels
Attention: The modification options and optional equipment shown are available for an additional charge. This description is provided for information only.
Other Options
- Weatherproof covers for outdoor operation
- Control cabinet installed separately
- Safety enclosure built by PROMASZ (or by the client)
Attention: The modification options and optional equipment shown are available for an additional charge. This description is provided for information only.
Trust the experts in your industry
Do you have any questions? Get in touch with us!
Are you looking for a specific machine, want to consult on a project or need a customized quote? Our technical advisors will be happy to help you select a solution tailored to your production.
Fill out the form and we will contact you within 48 hours. We offer:
- Technical consultation
- Individual pricing
- Individual pricing
Trust the experience of PROMASZ – choose proven technologies for your plant.
Have questions? We have answers
Important details about machine operation and configuration
Got questions about our offer and working with us? The answer could be here.
Yes, it is possible to set the width of the cut and the number of repetitions.
Yes, dynamic control maintains proper rope tension during operation.
Yes, you can manually control the movement of the carriage and the movements of the slides.
Yes, extended tracks, swivel carriage, additional guards, among others, are available.
Power supply, utilities (water, compressed air) and proper grounding must be prepared.
