AS-14.0-01.4A

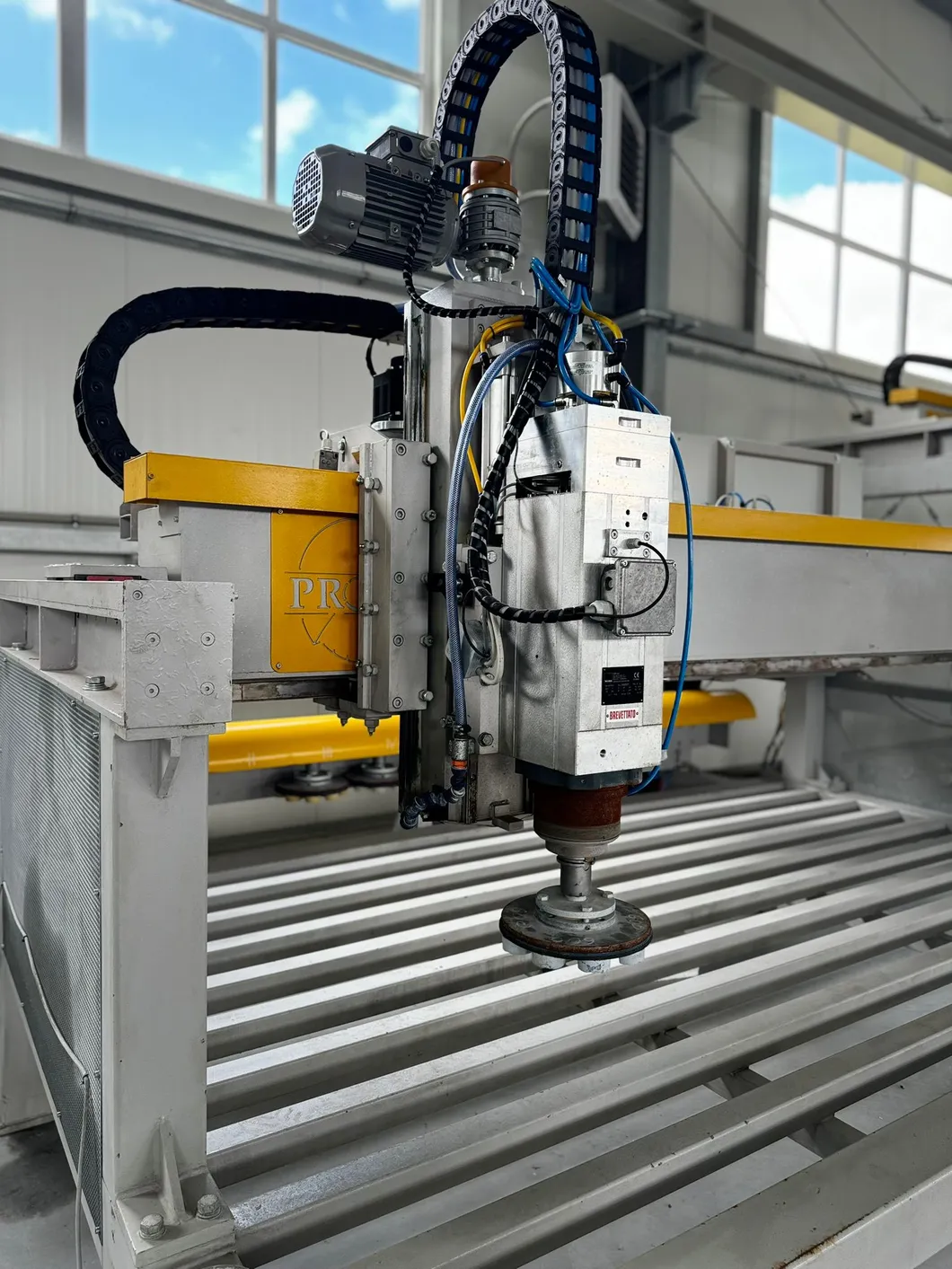

Automatic Stone Polisher for Memorial Slabs with Velcro Pads Ø200 with Automatic Tool Changer
PROMASZ AS-14.0-01.4A automatic grinding machine is a reliable and efficient device designed for grinding and polishing inscription plates with a maximum thickness of 25 cm, made of materials such as granite or marble, regardless of their shape. The machine is characterized by a rigid structure, which guarantees long life and reliability in daily work. It has a tool changing magazine.
Technical Data
- Max Slab Thickness: 25 cm
- Working Area: 3.5m×1.5m
- Motor with Pneumatic Pressure: 9.2 kW
- Control System: Mitsubishi
- Tool Magazine: Yes (features a tool change magazine, with automatic tool changing capability)
- Construction: Monoblock (no foundation required)
Installation Requirements
- Power supply cable: 5 x 6 mm2 copper
- Network protection before the machine: D40-3P
- Grounding: Before start-up, all fixed metal parts should be connected with a grounding strip of min 120 mm2 to the PE of the electrical installation.
- Utilities: Electricity, water, and compressed air should be supplied to the foundations from the control cabinet side.
Trust the experts in your industry
Do you have any questions? Get in touch with us!
Are you looking for a specific machine, want to consult on a project or need a customized quote? Our technical advisors will be happy to help you select a solution tailored to your production.
Fill out the form and we will contact you within 48 hours. We offer:
- Technical consultation
- Individual pricing
- Individual pricing
Trust the experience of PROMASZ – choose proven technologies for your plant.
Have questions? We have answers
Important details about machine operation and configuration
Got questions about our offer and working with us? The answer could be here.
The device is used for grinding and polishing memorial slabs made of materials such as granite or marble, regardless of their shape.

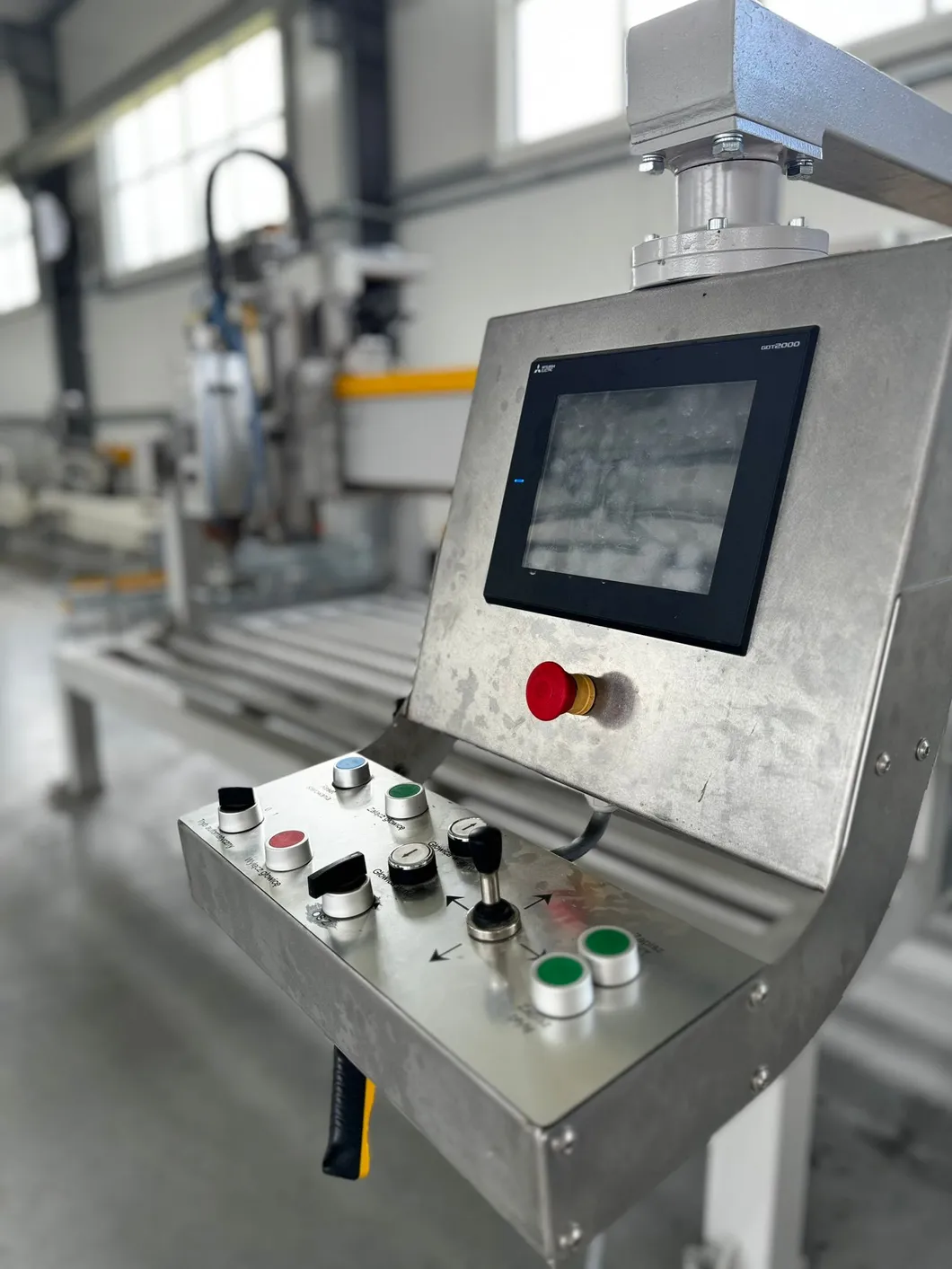

The automatic polisher operates in manual mode for positioning movements and in automatic mode according to a programmable controller, which interacts with a touchscreen panel.
No, the machine is built as a monoblock and does not require a special foundation.
Yes, the device can process several slabs consecutively, even if they vary in size and shape, automatically moving to the next one and changing the tool.
The working area is 3.5m×1.5m.
